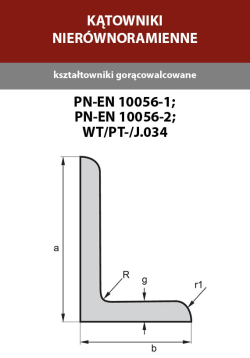

| wymiar a x b x g - (mm) | wag a- (kg/1m) | a - (mm) | b - (mm) | g - (mm) | R - (mm) | r1 - (mm) |
|---|---|---|---|---|---|---|
| 30x20x3 | 1.12 | 30 | 20 | 3 | 4 | 2 |
| 30x20x4 | 1.46 | 30 | 20 | 4 | 4 | 2 |
| 40x25x3 | 1.47 | 40 | 25 | 3 | 4 | 2 |
| 40x25x4 | 1.93 | 40 | 25 | 4 | 4 | 2 |
| 40x25x5 | 2.36 | 40 | 25 | 5 | 4 | 2 |
| 45x30x4 | 2.25 | 45 | 30 | 4 | 4 | 2 |
| 45x30x5 | 2.77 | 45 | 30 | 5 | 4 | 2 |
| 60x40x5 | 3.76 | 60 | 40 | 5 | 6 | 3 |
| 60x40x6 | 4.46 | 60 | 40 | 6 | 6 | 3 |
| 65x50x5 | 4.35 | 65 | 50 | 5 | 6 | 3 |
| 65x50x6 | 5.13 | 65 | 50 | 6 | 6 | 3 |
| 65x50x7 | 5.93 | 65 | 50 | 7 | 6 | 3 |
| 65x50x8 | 6.71 | 65 | 50 | 8 | 6 | 3 |
| 70x50x7 | 6.2 | 70 | 50 | 7 | 7 | 3.5 |
| 75x50x5 | 4.72 | 75 | 50 | 5 | 7 | 3.5 |
| 75x50x6 | 5.65 | 75 | 50 | 6 | 7 | 3.5 |
| 75x50x7 | 6.51 | 75 | 50 | 7 | 7 | 3.5 |
| 75x50x8 | 7.39 | 75 | 50 | 8 | 7 | 3.5 |
| 80x40x6 | 5.41 | 80 | 40 | 6 | 7 | 3.5 |
| 80x60x6 | 6.33 | 80 | 60 | 6 | 8 | 4 |
| 80x60x7 | 7.32 | 80 | 60 | 7 | 8 | 4 |
| 80x60x8 | 8.27 | 80 | 60 | 8 | 8 | 4 |
| 80x65x10 | 10.7 | 80 | 65 | 10 | 8 | 4 |
| 90x60x6 | 6.82 | 90 | 60 | 6 | 7 | 3.5 |
| 90x60x8 | 8.96 | 90 | 60 | 8 | 9 | 4.5 |
| 100x50x6 | 6.84 | 100 | 50 | 6 | 9 | 4.5 |
| 100x50x8 | 8.97 | 100 | 50 | 8 | 9 | 4.5 |
| 100x50x10 | 11.1 | 100 | 50 | 10 | 9 | 4.5 |
| 100x65x7 | 8.77 | 100 | 65 | 7 | 10 | 5 |
| 100x65x8 | 9.94 | 100 | 65 | 8 | 10 | 5 |
| 100x65x10 | 12.3 | 100 | 65 | 10 | 10 | 5 |
| 100x75x8 | 10.6 | 100 | 75 | 8 | 10 | 5 |
| 120x80x8 | 12.2 | 120 | 80 | 8 | 11 | 5.5 |
| 120x80x10 | 15 | 120 | 80 | 10 | 11 | 5.5 |
| 120x80x12 | 17.8 | 120 | 80 | 12 | 11 | 5.5 |
| 125x75x8 | 12.2 | 125 | 75 | 8 | 11 | 5.5 |
| 125x75x9 | 13.6 | 125 | 75 | 9 | 11 | 5.5 |
| 125x75x10 | 15 | 125 | 75 | 10 | 11 | 5.5 |
| 125x75x12 | 17.8 | 125 | 75 | 12 | 11 | 5.5 |
| 130x65x8 | 11.8 | 130 | 65 | 8 | 11 | 5.5 |
| 130x65x10 | 14.6 | 130 | 65 | 10 | 11 | 5.5 |
| 130x65x12 | 17.3 | 130 | 65 | 12 | 11 | 5.5 |
| 150x100x10 | 19 | 150 | 100 | 10 | 13 | 6.5 |
| 150x100x12 | 22.5 | 150 | 100 | 12 | 13 | 6.5 |
| 200x100x10 | 23 | 200 | 100 | 10 | 15 | 7.5 |
| 200x100x12 | 27.3 | 200 | 100 | 12 | 15 | 7.5 |
