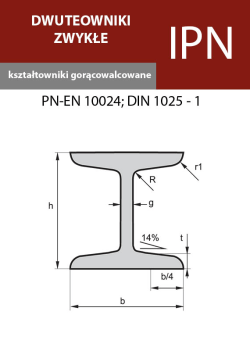

| oznaczenie | waga - (kg/1m) | h - (mm) | b - (mm) | g - (mm) | t - (mm) | R - (mm) | r1 - (mm) |
|---|---|---|---|---|---|---|---|
| IPN 80 | 5.94 | 80 | 42 | 3.9 | 5.9 | 3.9 | 2.3 |
| IPN 100 | 8.34 | 100 | 50 | 4.5 | 6.8 | 4.5 | 2.7 |
| IPN 120 | 11.1 | 120 | 58 | 5.1 | 7.7 | 5.1 | 3.1 |
| IPN 140 | 14.3 | 140 | 66 | 5.7 | 8.6 | 5.7 | 3.4 |
| IPN 160 | 17.9 | 160 | 74 | 6.3 | 9.5 | 6.3 | 3.8 |
| IPN 180 | 21.9 | 180 | 82 | 6.9 | 10.4 | 6.9 | 4.1 |
| IPN 200 | 26.2 | 200 | 90 | 7.5 | 11.3 | 7.5 | 4.5 |
| IPN 220 | 31.1 | 220 | 98 | 8.1 | 12.2 | 8.1 | 4.9 |
| IPN 240 | 36.2 | 240 | 106 | 8.7 | 13.1 | 8.7 | 5.2 |
| IPN 260 | 41.9 | 260 | 113 | 9.4 | 14.1 | 9.4 | 5.6 |
| IPN 280 | 47.9 | 280 | 119 | 10.1 | 15.2 | 10.1 | 6.1 |
| IPN 300 | 54.2 | 300 | 125 | 10.8 | 16.2 | 10.8 | 6.5 |
| IPN 320 | 61 | 320 | 131 | 11.5 | 17.3 | 11.5 | 6.9 |
| IPN 340 | 68 | 340 | 137 | 12.2 | 18.3 | 12.2 | 7.3 |
| IPN 360 | 76.1 | 360 | 143 | 13 | 19.5 | 13 | 7.8 |
| IPN 380 | 84 | 380 | 149 | 13.7 | 20.5 | 13.7 | 8.2 |
| IPN 400 | 92.4 | 400 | 155 | 14.4 | 21.6 | 14.4 | 8.6 |
| IPN 450 | 115 | 450 | 170 | 16.2 | 24.3 | 16.2 | 9.7 |
| IPN 500 | 141 | 500 | 185 | 18 | 27 | 18 | 10.8 |
| IPN 550 | 166 | 550 | 200 | 19 | 30 | 19 | 11.9 |
