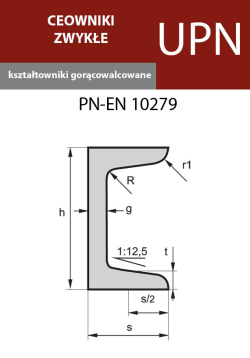

| oznaczenie | waga - (kg) | h - (mm) | s - (mm) | g - mm) | t - (mm) | R - (mm) | r1 - (mm) |
|---|---|---|---|---|---|---|---|
| UPN 25 | 1.3 | 25 | 12 | 4 | |||
| UPN 30 | 1.74 | 30 | 15 | 4 | |||
| UPN 30 | 2.2 | 30 | 15 | 5 | |||
| UPN 30 | 4.27 | 30 | 33 | 5 | |||
| UPN 35 | 2.15 | 35 | 17.5 | 4 | |||
| UPN 40 | 2.87 | 40 | 20 | 5 | |||
| UPN 40 | 3.23 | 40 | 20 | 6 | |||
| UPN40 | 4.87 | 40 | 35 | 5 | |||
| UPN 50 | 3.86 | 50 | 25 | 5 | |||
| UPN 50 | 5.59 | 50 | 38 | 5 | 7 | 7 | 3.5 |
| UPN 60 | 5.07 | 60 | 30 | 6 | |||
| UPN 60 | 6.3 | 60 | 40 | 6 | |||
| UPN 65 | 7.09 | 65 | 42 | 5.5 | 7.5 | 7.5 | 4 |
| UPN 70 | 6.72 | 70 | 40 | 6 | |||
| UPN 80 | 8.64 | 80 | 45 | 6 | 8 | 8 | 4 |
| UPN 100 | 10.6 | 100 | 50 | 6 | 8.5 | 8.5 | 4.5 |
| UPN 120 | 13.4 | 120 | 55 | 7 | 9 | 9 | 4.5 |
| UPN 140 | 16 | 140 | 60 | 7 | 10 | 10 | 5 |
| UPN 160 | 18.8 | 160 | 65 | 7.5 | 10.5 | 10.5 | 5.5 |
| UPN 180 | 22 | 180 | 70 | 8 | 11 | 11 | 5.5 |
| UPN 200 | 25.3 | 200 | 75 | 8.5 | 11.5 | 11.5 | 6 |
| UPN 220 | 29.4 | 220 | 80 | 9 | 12.5 | 12.5 | 6.5 |
| UPN 240 | 33.2 | 240 | 85 | 9.5 | 13 | 13 | 6.5 |
| UPN 260 | 37.9 | 260 | 90 | 10 | 14 | 14 | 7 |
| UPN 280 | 41.8 | 280 | 95 | 10 | 15 | 15 | 7.5 |
| UPN 300 | 46.2 | 300 | 100 | 10 | 16 | 16 | 8 |
| UPN 320 | 59.5 | 320 | 100 | 14 | 17.5 | 17.5 | 8.8 |
| UPN 350 | 60.6 | 350 | 100 | 14 | 16 | 16 | 8 |
| UPN 380 | 63.1 | 380 | 102 | 13.5 | 16 | 16 | 8 |
| UPN 400 | 71.8 | 400 | 110 | 14 | 18 | 18 | 9 |
